Description

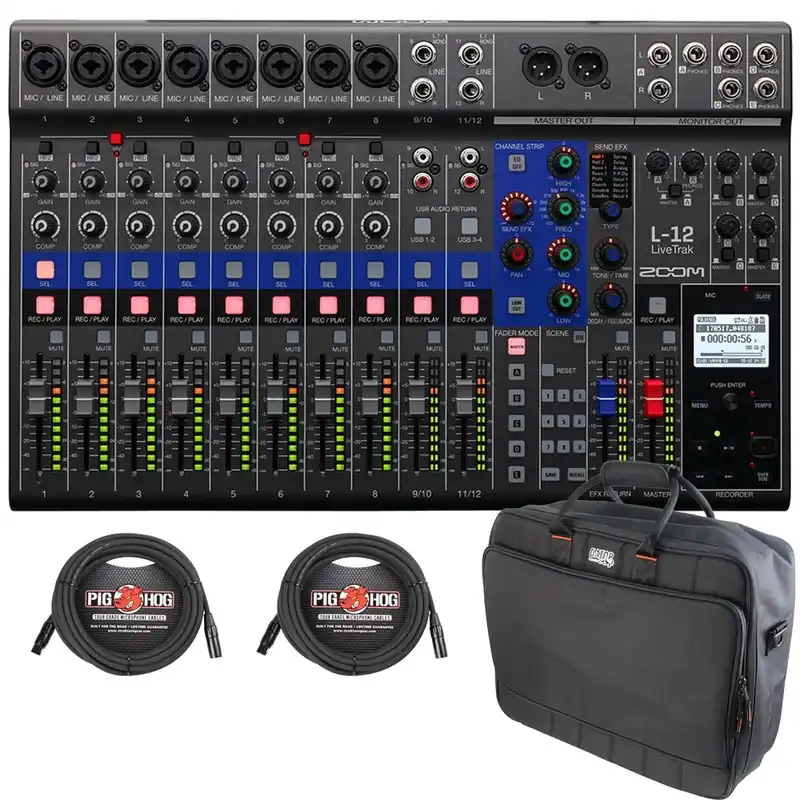

Zoom LiveTrak L-12 Digital Mixer
With the LiveTrak L‑12, you can finally mix, record, and monitor with a single piece of gear. It’s the only digital console that lets you mix your live performance and record up to 12 discrete channels – all while providing five individual custom headphonemixes.
EffortlessLive Mixing
LiveTrak’s 12 discrete channels (eightmono plus two stereo) have a 3-band mid parametric EQ and 16 built-insend effects. Its eight mono channels also have a dedicated compressor.With all these controls plus its 12-segment LED metering, the L-12offers just what you need for intuitivemixing.
RecordEverything,RemixAnywhere
LiveTrak lets you record 12 discrete tracks up to 24-bit/96 kHz WAV audio to an SD card while simultaneously mixing your live show. Tracks are recorded pre-EQ and effects, so they can be transferred to your favorite DAWfor further mixing and editing.
Five Custom Monitoringb Mixes
Each of LiveTrak’s five monitor outputs provides a unique mix, so every performer can create and save a mix that’s tailored to their preferences. Its headphone amplifier delivers volume that stands up in any live environment without the need for a separate headphone monitoring setup.
The Channel Strip
All 12 inputs include a channel fader and mute button. The eight mono inputs also include single-knob compression and gain control. Record or playback individual channels with the “Rec/Play” button. Use the “Select” button to apply Channel Strip settings (EQ and panning controls, and “EFX Return” settings) to the selectedchannel.
Easy EQ Control
The L-12 provides a smooth 3-band mid-parametric EQ and a low cut function for each inputchannel.
Plenty of Inputs
The L-12’s combo inputs support XLR or 1/4-inch connections. Channels 1 and 2 offer Hi-Z inputs for connecting an electric guitar or bass. Channels 9/10 and 11/12 have TS line connectivity for keyboards and other audio devices, as well as RCAinputs.
Navigation and Display
LiveTrak’s bright, backlit LCD screen and encoder knob let you access an intuitive menu system to create new projects, recall previous projects, and customize your recordersettings.
16 Onboard Effects
The L-12 offers 16 built-in effects with fully adjustable parameters. Choose from delay and reverb effects, then apply them to anychannel.
Custom Scene Settings
Save up to nine different scenes and recall your custom settings automatically. Each scene saves fader position, EQ settings, pan, mute, and more. The “Fader Mode” buttons allow you to design custom mixes for both the Master and monitorouts.
Slate Mic and Metronome
Use the built-in slate mic to record comments or talk-back, and program the metronome to your desiredtempo.
Flexible Monitoring Options
Five powered headphone outputs can send individual monitor sub mixes to headphones, in-ear monitors, or powered monitor speakers. Headphone output A also features two 1/4″ outputs for connection to additional monitors. The main outputs feature XLR connectors to easily connect to yourPA.
USB Connectivity for Your DAW
LiveTrak is also a 14-in/4-out USB audio interface with flexible routing options, offering unlimited possibilities. Class compliant mode, which enables connection with iOS devices, is alsosupported.*
