Description

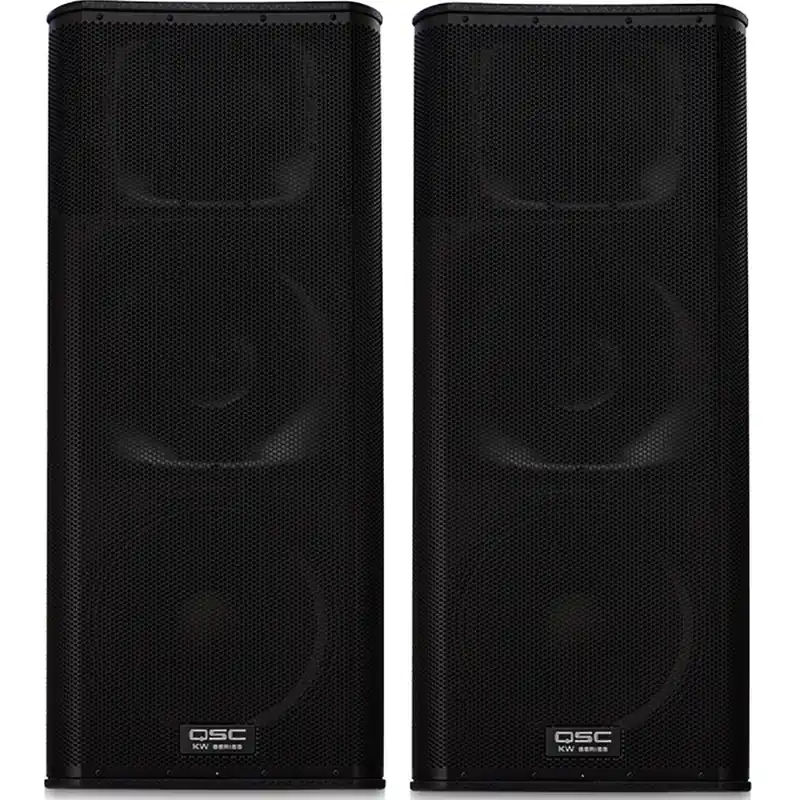

QSC KW153 Active Powered Loudspeaker, 3-Way, 1000w, 15”

Inputs, Outputs and MixingCombo XLR and 1/4″” TRS inputs accept both mic- and line-level input while a set of RCA phono inputs (except KSub) allow additional connectivity to portable MP3 players, CD players and line-level mixers. As many as three audio sources can be mixed internally and summed to a balanced output for “”daisy-chaining”” of multiple units. Separate direct outputs are also provided on each channel for additional output flexibility. DEEPSophisticated digital signal processing provides greater low-frequency extension while precisely protecting the woofer from over-excursion. DMTDirectivity Matched Transition matches the HF coverage angle to the natural coverage angle of the woofer for uniform frequency response over the entire coverage area. Axisymmetric Wave GuideThe axisymmetric wave guide eliminates the phase distortions of typical asymmetric horns for more natural reproduction. 1000 WattsThe same state-of-the-art, light-weight Class D amplifier module powers all the K and KW Series models.EQ ModesOptimize for a specific application with the simple flip of a switch. Energy ManagementAutomatic standby mode conserves energy and extends the life of the loudspeaker. LED OperationSwitch selectable: On (power indicator) / off (dark) / limit (limiter indication) Remote ControlEasy-to-use remote gain control is ideal for installed applications. Pro AppearanceSleek lines and a full grille for a more professional look than other molded loudspeakers. Locking IEC Power CableHelp prevent unexpected interruptions. ConnectivityMic/line and RCA inputs along with onboard mixing controls allow greater flexibility. Tilt-Direct™ Pole MountA simple turn of the dial is all it takes to alter the vertical directivity by 7.5 degrees. Suspension and MountingWith integrated threaded inserts, KW Series is equally at home in mounted or flown applications. Threaded PoleThe KW181 subwoofer comes with a threaded pole for a snug, safe fit.Intrinsic CorrectionAn exclusive QSC process that applies extensive acoustic measurements to noticeably improve audio quality. Class DHigher efficiency produces less heat and more sonic performance with lower overall current draw. ProtectionsQSC’s Guardrail™ technology protect your loudspeakers from overexcursion. On-demand cooling fan and thermal limiting prevent overheated electronics.Features

• 15” woofer; 6.5” midrange woofer; 1.75” diaphragm compression driver
• 75° conical DMT coverage
• Maximum SPL 134 dB peak
• 1000-watt Class D power modules in all models (2 × 500 W continuous)
• Onboard mixer with two combo XLR and ¼” inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output
• Extensive DSP featuring DEEP™ and Intrinsic Correction™ enhances system performance
• DMT™ (Directivity Matched Transition) ensures uniform coverage across the entire sound field
• Rugged, texture-painted birch enclosures
• Four-position Mic/Line gain
• Tour-grade 16 gauge steel grilles
• Comfortable ergonomic handles
• 35 mm standard (non-tilt) pole socket
• M10 rigging points for suspended installation
