Description

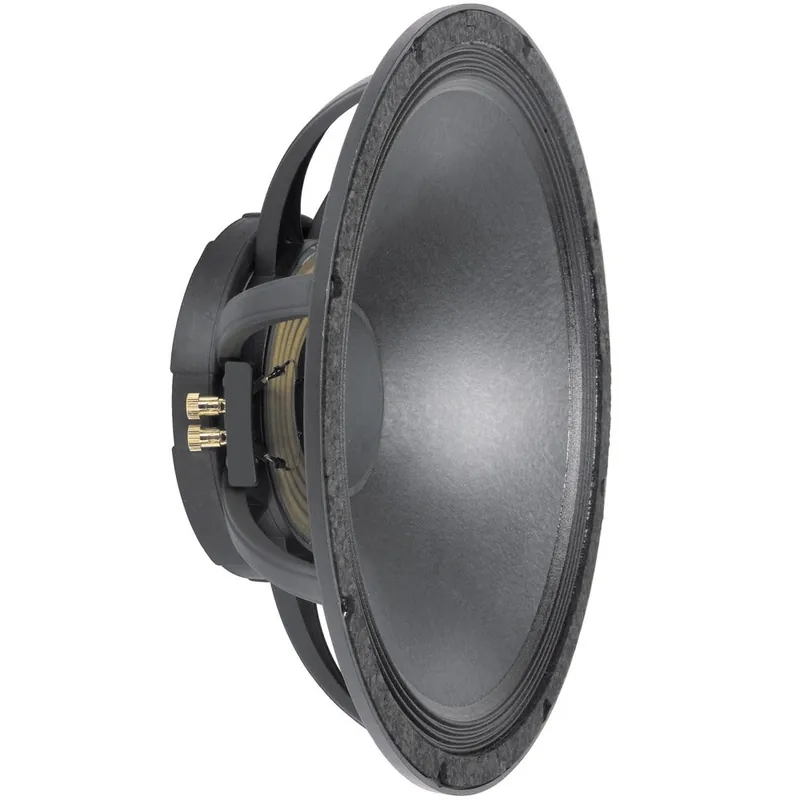

Peavey 1508-8 SPS BWX 15″ Woofer 8 Ohm Low Frequency Replacement Speaker/WooferFeatures
-
Impedance: 8 Ohms
-
Power capacity: 2000 W Peak 1000 W Program 500 W Continuous
-
Sensitivity: 96.7 dB / 1 W 1 m
-
Usable freq. range: 40 Hz ~ 2 kHz
-
Cone: Kevlar® impregnated cellulose
-
Voice coil diameter: 4.0″ / 100 mm
-
Voice coil material: Aluminum ribbon wire Polyimide-impregnated fiberglass former Nomex® stiffener Solderless diffusion welded OFHC copper leads
-
Net weight lb. / kg: 17 lbs. / 7.7 kg
-
Znom (ohms) 8
-
Revc (ohms) 5.27
-
Sd (Square Meters) 0.084
-
BL (T/M) 15.37
-
Fo (Hz) 41.9
-
Vas (liters) 185.9
-
Cms (uM/N) 158.5
-
Mms (gm) 77.60
-
Qms 10.36
-
Qes 0.457
-
Qts 0.437
-
Xmax (mm) 4.7
-
Le (mH) 0.42
-
SPL (1W 1m) 96.7
-
No (%) 2.90%
-
Vd (cu. in. / ml) 48.1 / 789
-
Pmax (Watts pgm.) 1000
-
Disp (cu. in. / ml) 197/ 3229
-
15″
-
Weight Unpacked: 17.50 lb(7.938 kg)
-
Weight Packed: 23.00 lb(10.433 kg)
-
Width Packed: 21″(53.34 cm)
-
Height Packed: 22.5″(57.15 cm)
-
Depth Packed: 9.25″(23.495 cm)
